Overview

xMagic is a platform for designing, testing, and deploying AI agents that can answer questions, use tools, and execute specialized workflows through Subagents.

This page gives you the mental model for the entire product so the rest of the docs feel intuitive.

---

The platform model in one view

Entity	Purpose	Typical owner
Workspace	Top-level container for people, permissions, billing, Drive, and Agents	Org admin/owner
Agent	Main assistant your users interact with	Builder / product team
Subagent	Specialized workflow under an Agent	Builder / ops team
Tool	Action capability available to a Subagent	Builder / integrator
Drive	Retrieval context (files/links/integrations)	Knowledge/content owner

At runtime, users talk to an Agent. The Agent routes work to the right Subagent, and the Subagent uses tools + Drive context to complete requests.

---

How these pieces work together

Workspace
  └── Agent
       ├── Subagent: Scheduling
       │     ├── Tool: Scheduling
       │     └── Drive: Booking Policies
       ├── Subagent: Support Escalation
       │     ├── Tool: Ticket Forwarding
       │     └── Drive: Support SOPs
       └── Subagent: Reporting
             ├── Tool: Report Generation
             └── Drive: KPI Definitions

---

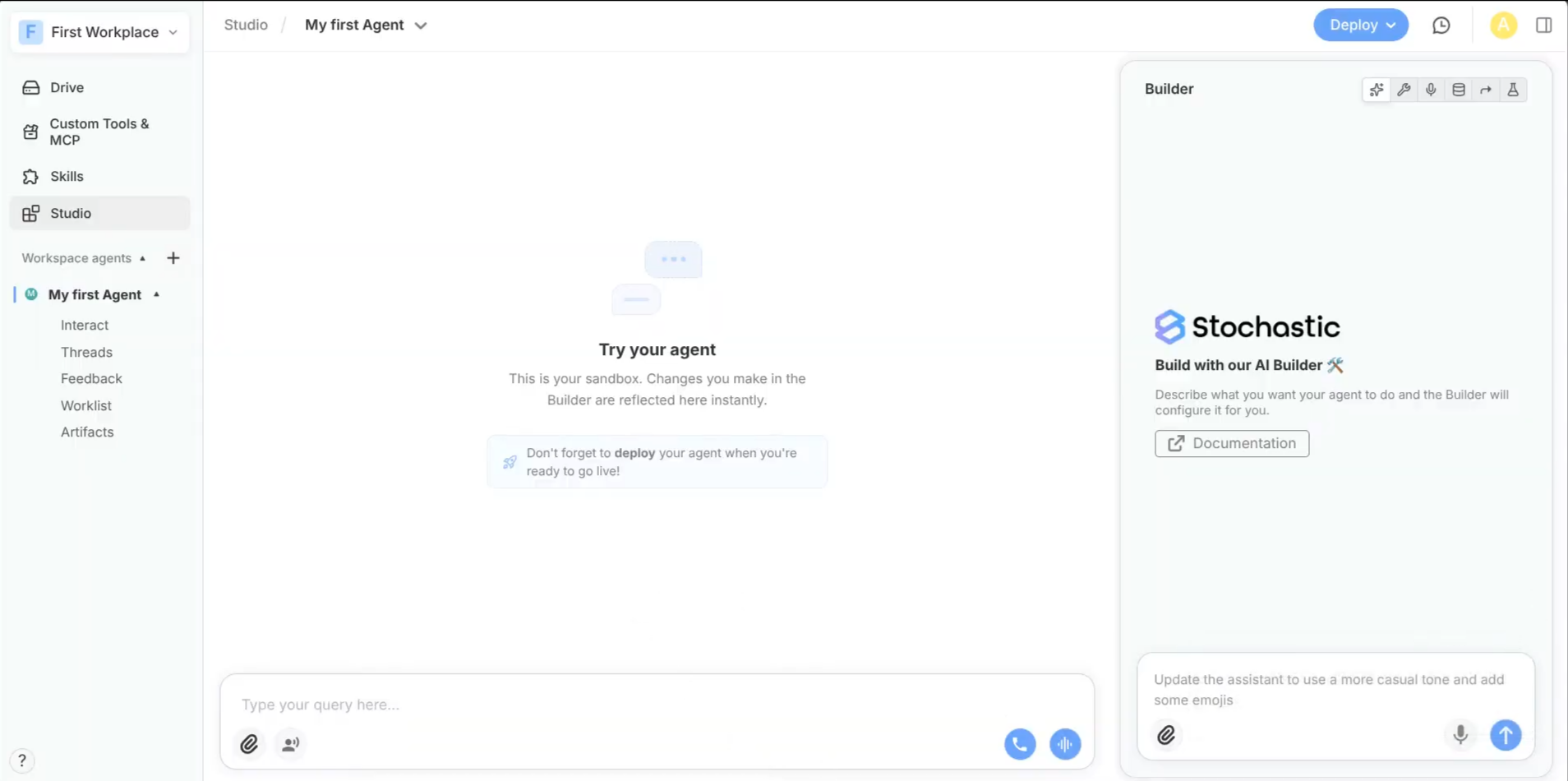

Product layout

xMagic primarily uses a two-panel experience:

• Sidebar: global navigation + Agent navigation
• Main area: selected page content (Composer, Interact, Threads, etc.)

---

Sidebar navigation model

Global entries

Item	Why you use it
Drive	Manage retrieval content and integrations
Skills	Reusable custom capability packages
Tools	External tool/service integrations
Composer	Configure Agent/Subagents and deploy

Agent entries

Each Agent can expose:

• Interact
• Threads
• Feedback
• Worklist
• Artifacts
• Composer/Drive-linked config views

---

Draft vs deployed (important)

xMagic separates draft configuration from deployed runtime behavior.

• In Composer/Preview, you test draft changes.
• In Interact/public usage, users hit deployed behavior.

Use this model intentionally:

1. Build in draft
2. Validate
3. Deploy version
4. Monitor
5. Iterate

---

Typical lifecycle

1. Create Agent
2. Define Subagents
3. Attach tools
4. Attach Drive folders
5. Test in Preview
6. Save version
7. Deploy
8. Monitor Threads/Feedback/Worklist
9. Improve and redeploy

---

Permission-aware experience

What you see and can do depends on workspace privileges:

• creating/editing/deleting Agents/Subagents
• viewing/editing private Drive
• Skills management
• billing/member management

If something appears missing, check role privileges first.

---

Best practices

• Start simple: one Agent + few focused Subagents
• Keep Subagent responsibilities narrow
• Attach only relevant tools per Subagent
• Keep Drive folders domain-specific
• Treat deployment as a release process, not a save action
